Services

Raw Material

Hollinbrow Precision Products (UK) Ltd specialise in the supply of Precision manufactured thin metals in Laser Cut Parts, Precision rolled slit coils, Precision drawn wire, Tube, Bar and cut lengths in Stainless Steel, Carbon Steels (Annealed, Temper Rolled and Hardened & Temper), Mild Steels – low carbon (Annealed, Temper Rolled), Plated Mild Steels (Tin, Nickel, Copper, Brass, Zinc, Galvanised), Shim Steel (from 0.001″ thick), Aluminium, Aluminium Foil, Anodised Aluminium, Tool Steels, Copper, Brass, Nickel Silver, Phosphor Bronze, Tungsten, Earthing Strip, Titanium and Titanium Alloys, Inconel, Nickel, Nickel Alloys and Alloy Range for thin Foils. We keep the largest stock of Stainless Steel Shim and Stainless Steel Foil in the United Kingdom. Our Stainless Steel foil stock starts at 0.005mm.

Laser Cutting & Laser Marking

We can laser cut to your requirement, send us your drawing and we will do the rest.

We laser cut from 0.010mm thick in stainless steel, mild steel, carbon steel, brass, phosphor bronze, aluminium and nickel alloys. Laser cut parts can be supplied in quantities as small as one off’s.

Our Laser Marker offers the optimum combination of high power, high pulse frequencies and adjustable pulse duration. The high-power marking laser is designed for demanding applications with high power requirements and short cycle times. We are the first choice when it comes to deep engraving, annealing and special micro-structuring applications in particular.

Precision Waterjet Cutting

Fast cutting with the best precision in the world.

We can Waterjet cut to your requirement, send us your drawing and we will do the rest.

Hollinbrow Precision Waterjet Cutting

The micro-abrasive waterjet process produces an exceptionally fine surface finish. Where an enhanced edge quality is required, cutting speeds can be reduced further to achieve an even higher-quality finish.

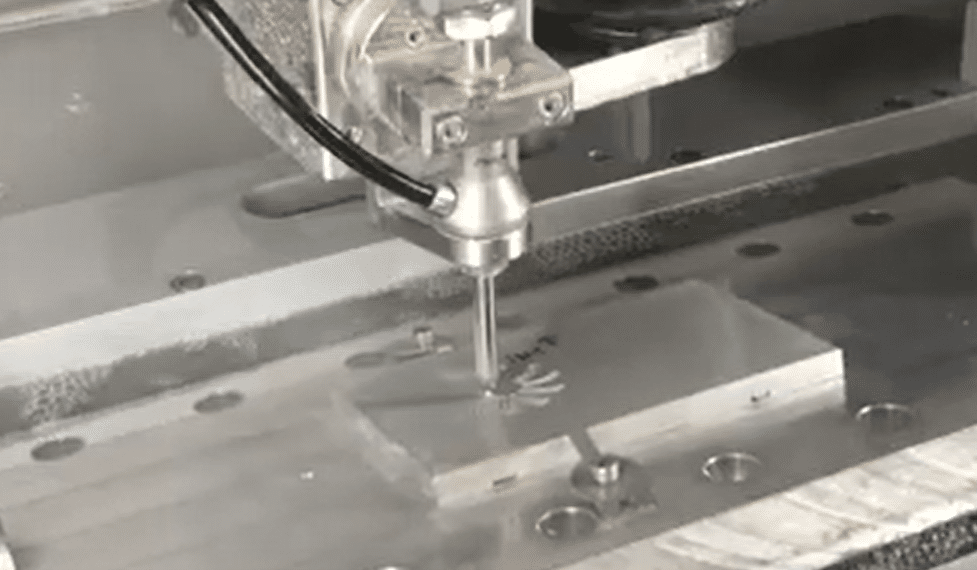

Increase Productivity with Our 5-Axis Waterjet Cutting Head

Higher Cutting Speeds

With full 5-axis capability, the cutting head continuously adjusts the jet approach angle to compensate for taper during the cutting process. This enables parts to be produced with parallel edges while maintaining higher cutting speeds.

As a result, cutting speeds can be increased by up to 150% compared with conventional waterjet cutting methods, whilst still achieving the required surface finish. The increased throughput delivers substantial productivity gains, helping to reduce manufacturing costs and accelerate return on investment.

Exceptional Precision

Our machine has been specifically designed for high-precision manufacturing applications. The system offers positional accuracy of up to ±2.5 μm and can produce components to tolerances as tight as ±10 μm.

This combination of ultra-high precision and increased cutting speeds enables Hollinbrow to deliver outstanding quality, accuracy, and productivity across a wide range of applications.

Key Benefits

• Up to 150% higher cutting speeds
• 5-axis taper compensation for improved accuracy
• Positional accuracy of up to ±2.5 μm
• Part tolerances as tight as ±10 μm
• Increased machine throughput
• Reduced manufacturing costs
• Superior edge quality and dimensional control
• Faster return on investment

Hollinbrow’s Precision Waterjet Cutting service is ideally suited to the manufacture of highly accurate components where both precision and productivity are critical. Typical applications include aerospace, medical, electronics, precision shims, springs, and other high-tolerance components.

Precision Turned Components

CNC turned parts in batches sizes from 1 off to 1000’s off. In tool steel, mild steel, carbon steel, brass, copper, aluminium, bronze and nickel alloys.

From 5mm diameter to 305mm diameter.

Precision Milled Components

CNC milled parts in batches sizes from 1 off to 1000’s off. In tool steel, mild steel, carbon steel, brass, copper, aluminium, bronze and nickel alloys.

Vibratory Finishing Service

We can deburr and clean the surface of your parts with our vibratory service.

Quality Flat Lapping Service

For those extra tight no standard thickness tolerances we can lap you part to tolerance to your requiremnet depending on the shape of your parts.

Call us to discuss at greater length.

Precision Pressed Parts

When your requirement is in the 1000’s we can press your part with your tooling or we can manufacture your tooling for you to produce the finished components.
